Recessed LED Downlight 30W-180W
Model:KW-SD100W
Product introduction
High Power LED DownlightType:Recessed Mounted
Power:30W-180W

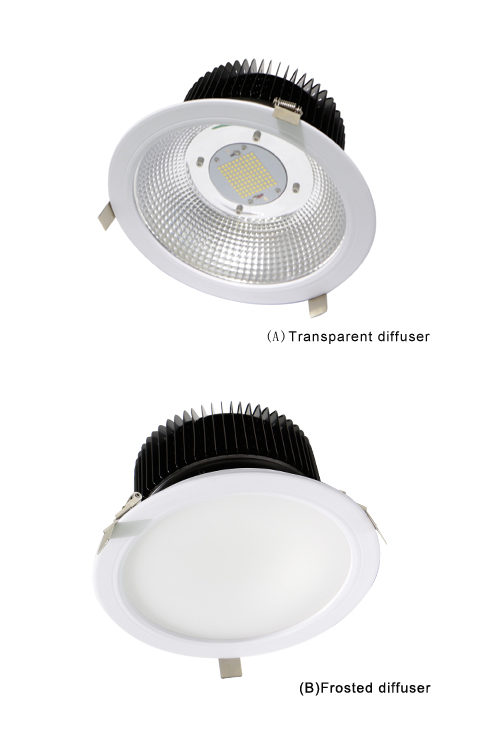

Disffuser:Transparent/Frosted
Dimmable and emergency are on request.Contact manufacturer
 |
KW-SD Model led downlight is design for high ceiling lighting for new install commercial lighting or replacement for downlight applications with compact fluorescent/metal halide lamps .Compatible with standard ceiling cutouts 145mm ,150mm, 170mm,180mm,200-215 mm ,230-250mm , 270-280mm or 300-320mm. Wide lighting color (Kelvins) range 2700-7000K, RGB lighting colors can be customized ,dual functions of lighting and decorating.
 |

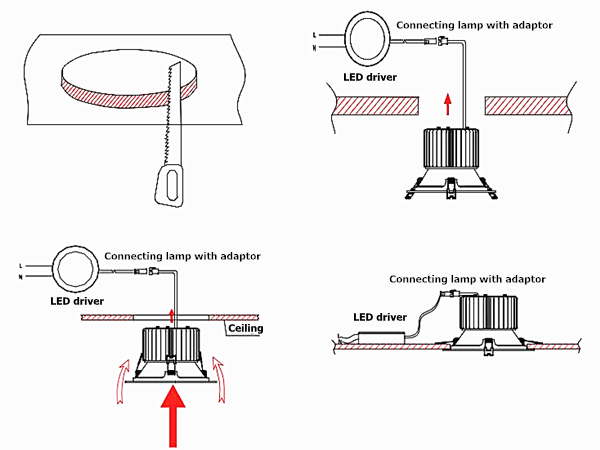

| Installation Instructions |
 |
| Available dimension | Dimension | Cutout | Weight |
| 5 inch | 175x120mm | 145mm | 0.4kg |
| 6 inch | 200x120mm | 170mm | 0.48kg |
| 8 inch | 225x130mm | 200mm | 0.68kg |
| 9 inch | 235x130mm | 215mm | 0.68kg |
| 10 inch | 270x130mm | 240-250mm | 0.98kg |
| 12 inch | 300x165mm | 270-280mm | 1.2kg |
| 14 inch | 340x160mm | 300mm | 1.5kg |
| Specifications | ||||||
|
Input Voltage
|
AC100V～305V DC12V/ 24V
|
|||||
|
Frequency Range
|
50Hz～60Hz
|
|||||
|
Total Harmonic Distortion
|
≤ 9 %
|
|||||
|
Power Factor
|
＞0.95
|
|||||
|
Power Efficiency
|
＞87 %
|
|||||
|
Working Voltage
|
DC30～36V
|
|||||
|
Color Rendering Index
|
Ra＞80
|
|||||
|
Material
|
Aluminum Alloy
|
|||||
|
Led Luminous Efficiency
|
130Lm /W
|
|||||
|
lamps Efficiency
|
＞91 %
|
|||||
|
Illuminance Uniformity
|
＞0.6
|
|||||
|
Color Temperature
|
2700-7000K
|
|||||
|

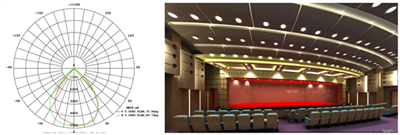

Light emitting angle
|
35° / 60°/ 90°/ 120°
|
|||||
|
Junction Temperature
|
≤80℃
|
|||||
|
Working Temperature
|
-40℃ ～ +55℃
|
|||||
|
Storage Temperature
|
-25℃ ～ +65℃
|
|||||
|
Working Lifespan
|
50000H
|
|||||
| Family Model | ||||||
| Model No. | Watt | Lamp Lumen | ||||
| KW-SD30W | 30W | 2700-3300lm | ||||
| KW-SD40W | 40W | 3600-4400lm | ||||
| KW-SD50W | 50W | 4500-5000lm | ||||
| KW-SD60W | 60W | 5400-6000lm | ||||
| KW-SD70W | 70W | 6650-7000lm | ||||
| KW-SD80W | 80W | 7200-8000lm | ||||
| KW-SD100W | 100W | 9000-10000lm | ||||
| KW-SD120W | 120W | 10800-12000lm | ||||
| KW-SD150W | 150W | 14250-15750lm | ||||
| KW-SD180W | 180W | 17100-18000lm | ||||
| KW-SD200W | 200W | 19000-20000lm | ||||
● High brightness led 130lm/W
●Power-saving, best aluminum alloy fin heat sink for high effective cooling operation
●Both dimmable and non-dimmable are available (0-10V /1-10V/triac/dali dimmable)
●RGBW and CCT Changeable are on available.
● Emergency led downlight are on request.
●Go green,energy saving,low carbon environmental protection,no mercury pollution
●High power, light weight, easy installation
●Direct retrofit to most LED Down Light 5 inch/ 6 inch/8 inch /9 inch/10 inch / 12 inch diameter are available.
Replacement compact fluorescent/metal halide lamps .
| Product Description | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Volume | Gross weight |
| 6 inch Downlights | 6 | 53x43.5x34cm | 0.078cbm | 18.5kg |
| 8 inch Downlights | 6 | 55x45x36cm |
0.089cbm |
19kg |
| 10 inch Downlights | 6 | 58x47*36CM | 0.098cbm | 20kg |
Corridor, office, shopping mall, display window and inner lighting
Reception room, lobby, hotel room lighting
Museum, exhibition hall, art gallery exhibit lighting
Bus/railway/subway stations and other indoor lighting.
